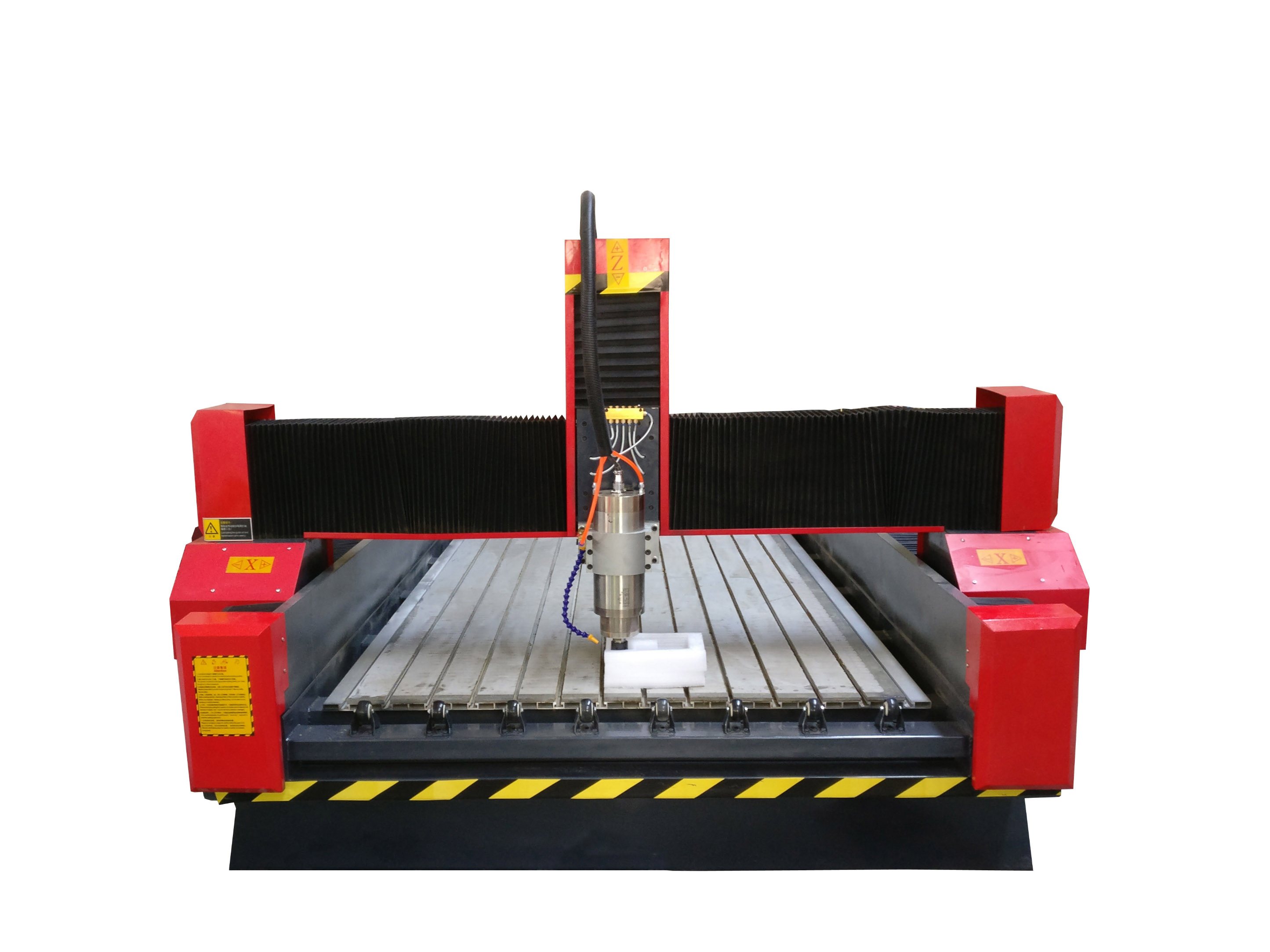

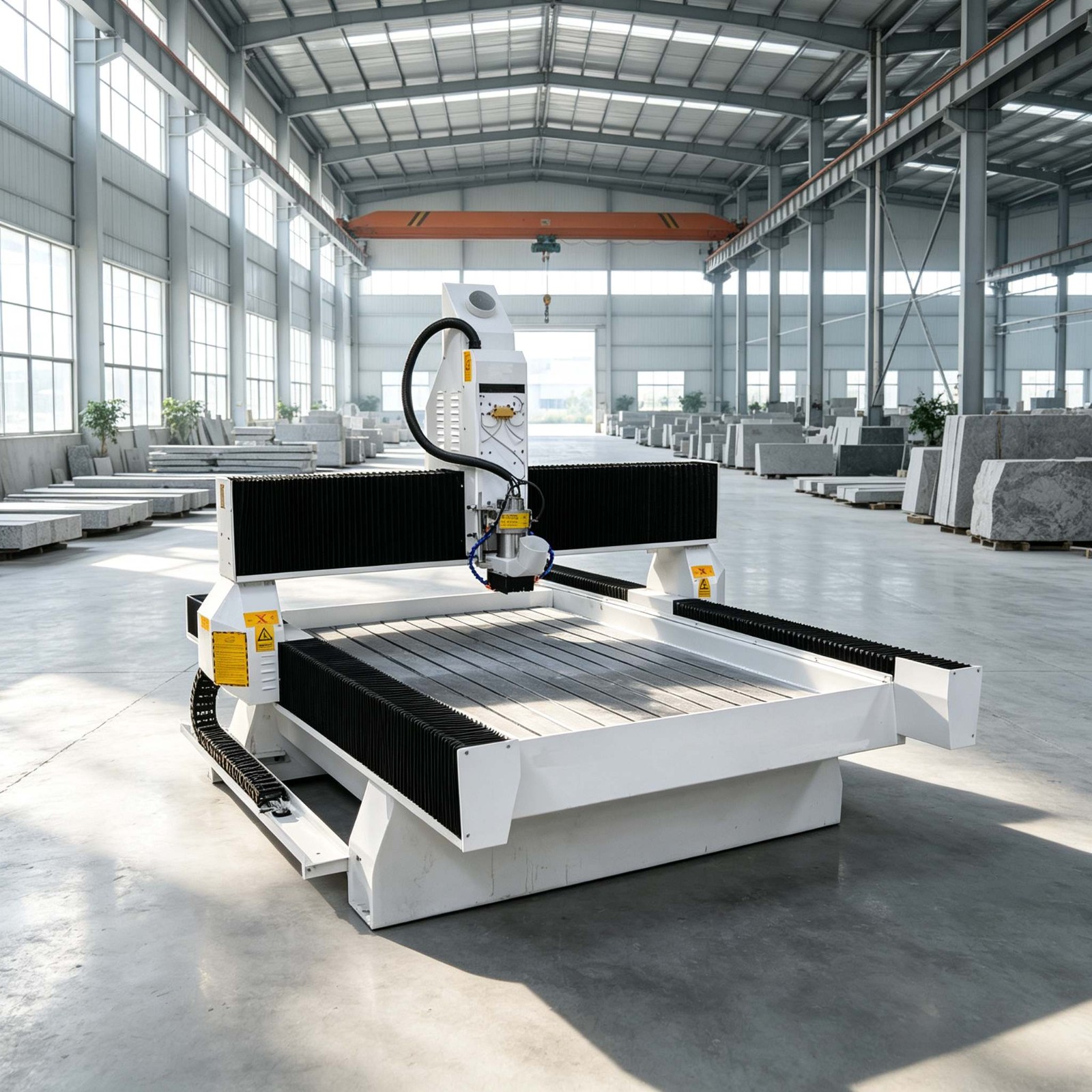

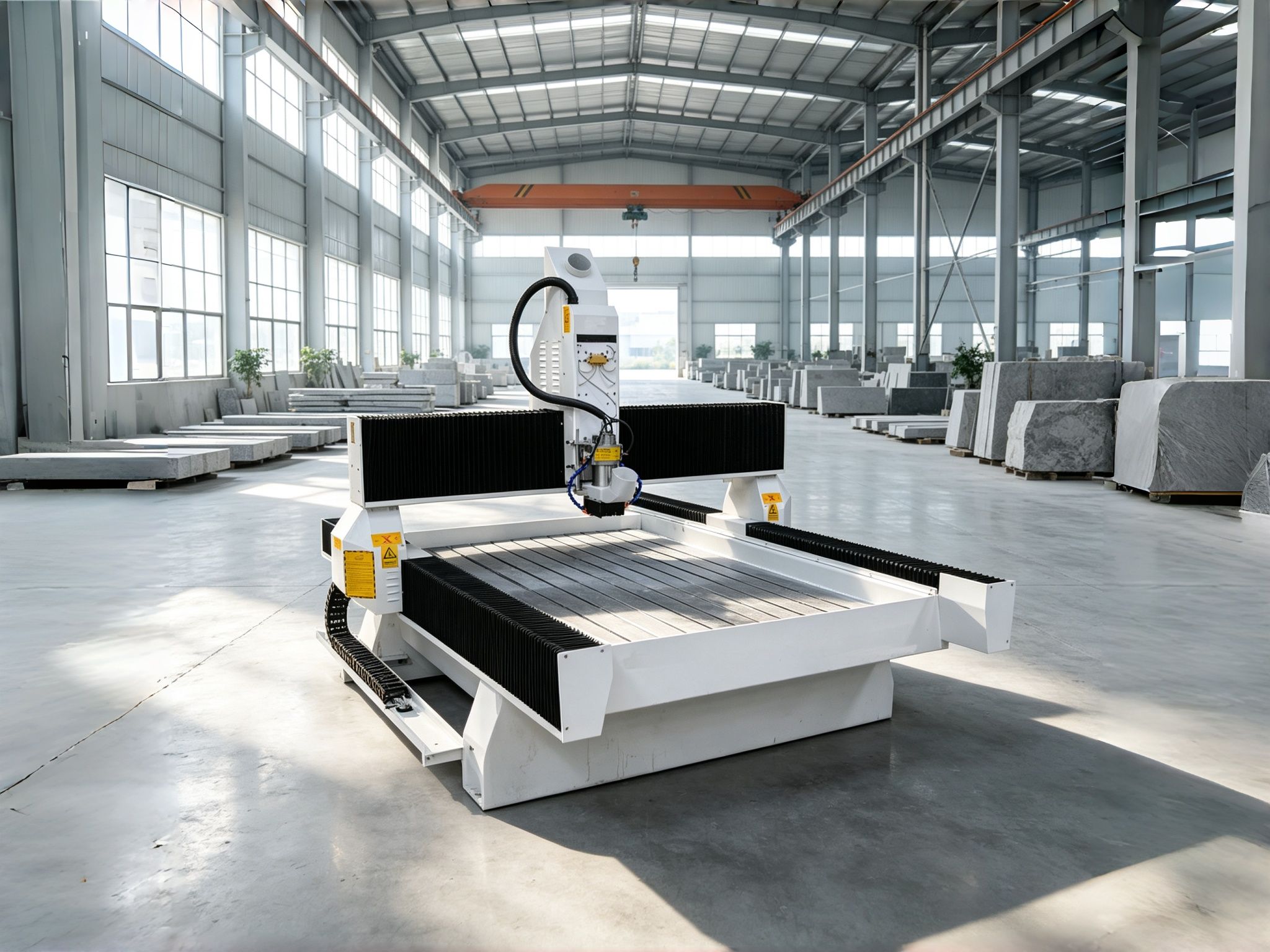

Stone CNC router machine GS-1325S

inquiry

SPECIFICATION
WORKING AREA	1300mm×2500mmx200mm
REPEATABILITY	0.04/300mm
SPINDLE POWER	6.0KW(Water cooling)
GUIDE WAY	LINEAR (HIWIN)
ROUTER BITS DIAMETER	Φ3.175 Φ6 Φ12.7Φ20
POWER	AC380V/50HZ
MOVING SPEED	60m/min
MOTOR	Hybrid servo motor (Leashine)
WORKING SPEED	25m/min
TRANSMISSION	X Y AXIS HELICAL RACK, Z AXIS BALL SCREW
Spindle rotating speed	24000rpm
Command	G code.u00.mmg*plt
CONTROLLER	DSP(A11)


◆X,Y,Z three-axis all the imported linear square orbit .

◆X,Y,Z three-axis all have the waterproof, dustproof system

◆Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone

◆Adopt Taiwan transducer with stable output signals

◆Fully sgielded,bending circuity, and imported electronic components.

◆.Adopt double drivers to drive y axis, motivity is more stronger

◆Whole seamless steel structure,can load weight up to 1000kg

Heavy weight of the tile, bluestone,marble, granite,white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.
